Overview - ISO/IEC 14543-4-1:2008 (HES Application Layer)
ISO/IEC 14543-4-1:2008 specifies the application layer services and protocol for Home Electronic Systems (HES), targeting network enhanced control devices of HES Class 1. Based on the ECHONET model, the standard defines the interface between the user process and the network, covering both field-level communication (device-to-device) and management functions. It describes message structures, service primitives, application objects, property/value handling and API guidance for implementers.
Keywords: ISO/IEC 14543-4-1:2008, Home Electronic System, HES, application layer, ECHONET, network enhanced control devices
Key Topics and Technical Requirements
- Application layer services: Defines communication modes and service primitives for synchronous/asynchronous exchanges, including obtain, control and notify patterns.
- APDU (Application Protocol Data Unit): Structure and fields such as data link headers, source/destination addresses, application data counter, ADATA (plain) and PADATA (secure) areas.
- Application objects (AOJ): Object model for devices and profiles, object addressing, and class-specific properties.
- Application properties and services: Property codes (APC), service codes (ASC/CpASC) and operations for property read, write, notification, element-stipulated actions (add/delete/existence confirmation).
- State management: Communication processing block states (cold/warm start, normal operation, error states) and transition rules.
- Access control & error handling: Rules for access limitation, accepted/“process not possible” responses and service sequencing.
- APIs and implementation guidance: Annexes provide API function descriptions for transport/network and application layers plus application design guidelines.
- Security support: The standard includes provisions for plain and secure application message formats (plain ADATA and secure PADATA).
Applications - Who Uses This Standard
ISO/IEC 14543-4-1 is practical for organizations and professionals involved in:
- Smart home device manufacturers (smart meters, HVAC controllers, lighting, appliances)
- IoT/HES firmware and protocol developers implementing application-layer behavior
- System integrators and installers designing interoperable home automation systems
- Product architects defining device profiles and application objects
- Standards bodies and test labs validating HES Class 1 device conformity
Typical use cases include exchanging device status, issuing control commands, event notifications, local automation logic, and device lifecycle management in residential and small-building automation.
Related Standards
- ISO/IEC 14543 family (other parts of the HES architecture and communication layers)
- ECHONET specifications (basis for object/property models and messaging)
For implementers, ISO/IEC 14543-4-1:2008 is a practical reference to ensure interoperable application-layer behavior for HES Class 1 devices using the ECHONET model.

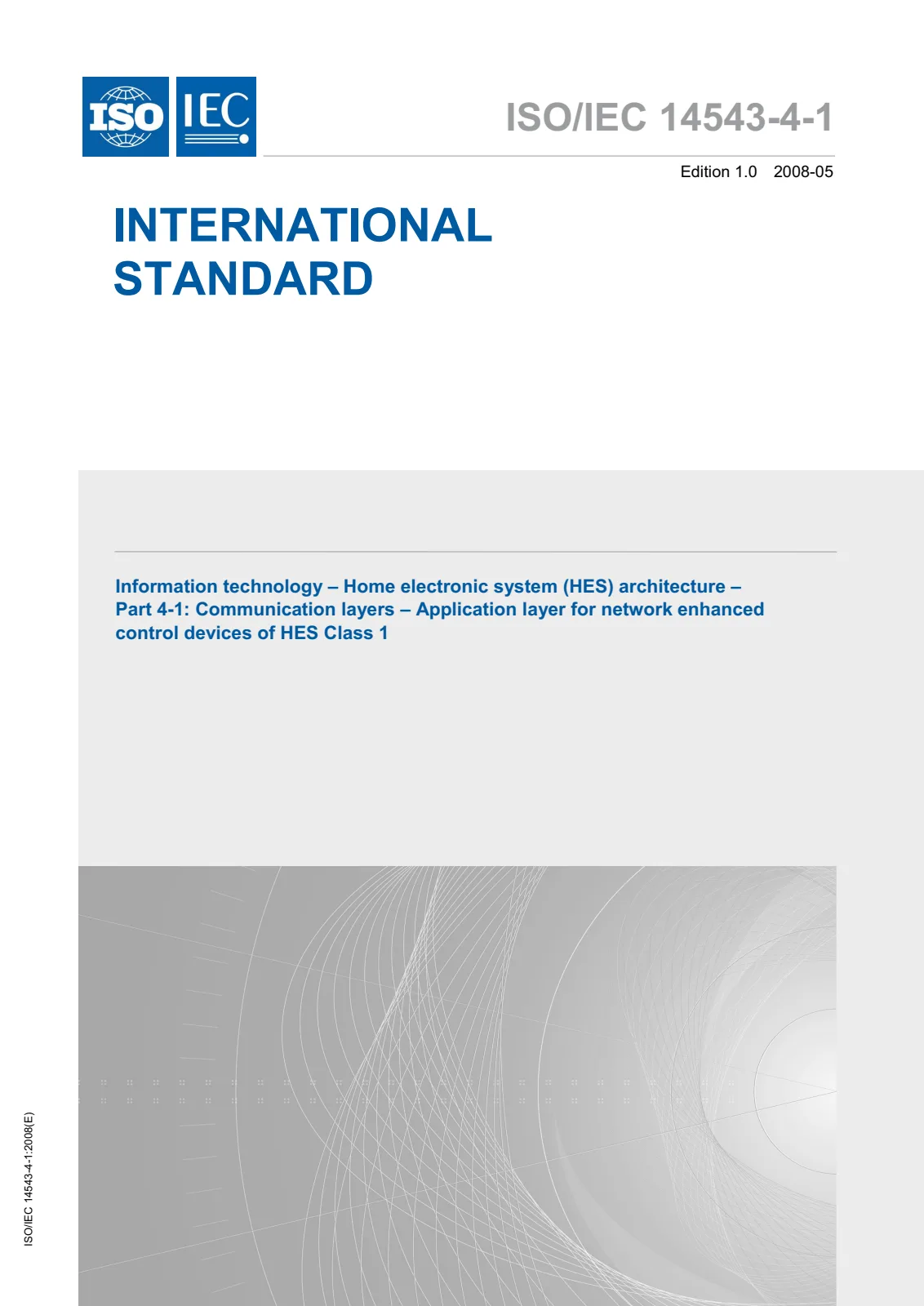

Open preview (PDF)Information technology — Home electronic system (HES) architecture — Part 4-1: Communication layers — Application layer for network enhanced control devices of HES Class 1
