Overview
ISO/IEC 19566-6:2019/Amd 1:2021 is an important amendment to the ISO/IEC standard for JPEG systems, specifically Part 6 which focuses on JPEG 360. This amendment introduces new JPEG 360 image types, including stereoscopic 360 images, and enhances rendering capabilities by adding accelerated Region of Interest (ROI) viewport rendering. Developed by the Joint Technical Committee ISO/IEC JTC 1, Subcommittee SC 29, this update aims to improve immersive imaging technologies by supporting advanced 360-degree stereoscopic formats and efficient, low-latency viewport transmission.
Key Topics
-
Addition of New JPEG 360 Image Types
The amendment specifies the inclusion of stereoscopic 360 images as a new image type, enabling immersive three-dimensional experiences by supporting left and right eye image pairs. These stereoscopic images are stored in three distinct formats:
- Side-by-side: Horizontally packed left- and right-eye images
- Top-bottom: Vertically packed left- and right-eye images
- Extended: One image stores stereoscopic scene metadata while referencing the other eye's image, allowing backward compatibility and efficient management.
-
Accelerated ROI Viewport Rendering
To enhance user experience, the amendment mandates accelerated viewport rendering that facilitates efficient and low-latency delivery of specific regions within the 360-degree images. This supports interactive applications such as virtual reality (VR), head-mounted displays, and online streaming platforms by improving rendering speed and responsiveness.
-
Stereoscopic Vision Model for Viewports
The amendment defines a stereo vision model to accurately map viewports on both left and right eye images based on field of view (FOV) parameters. This approach models the human visual system more naturally, ensuring realistic depth perception in stereoscopic 360 content.
-
Metadata Enhancements
Updated XMP metadata expressions integrate JPEG 360-specific schemas, supporting detailed descriptions of image and viewport parameters such as projection type, field of view boundaries, and references to JPEG codestream boxes. These metadata structures enable interoperability and facilitate advanced image processing workflows.
Applications
The standard amendment directly benefits several practical domains:
-
Virtual Reality and Augmented Reality
Enhanced stereoscopic 360 support improves depth perception and immersion in VR headsets and AR devices, offering more realistic user experiences with low-latency viewport rendering.
-
Panoramic and Immersive Photography
Photographers and content creators gain new options for stereoscopic panorama formats, providing viewers with enhanced three-dimensional visuals compatible with existing JPEG infrastructure.
-
Streaming and Broadcasting
Efficient ROI rendering reduces bandwidth consumption by transmitting only regions of interest within a 360 image, enabling smoother streaming of immersive content on constrained networks.
-
3D Media Authoring and Playback Tools
Software developers benefit from standardized stereoscopic formats and metadata models, simplifying implementation of stereoscopic 360 image capture, editing, and playback capabilities.
Related Standards
- ISO/IEC 19566-5: JPEG Universal Metadata Box Format (JUMBF) – Vital for referencing and embedding metadata within JPEG 360 files, especially in the extended stereoscopic format.
- ISO/IEC 19566 Series: Other parts focus on various aspects of JPEG systems including coding, metadata, and content types ensuring cohesive integration across JPEG standards.
- XMP (Extensible Metadata Platform): Adobe XMP framework used within JPEG 360 metadata for describing image properties and viewport configurations.
ISO/IEC 19566-6:2019/Amd 1:2021 represents a significant advancement in JPEG 360 technology by enhancing stereoscopic image support and optimizing rendering strategies. This enables next-generation immersive experiences that are efficient, interoperable, and compatible with both current and emerging viewing platforms. For developers and content creators working with 360-degree media, adherence to this amendment ensures cutting-edge image quality and performance in immersive environments.

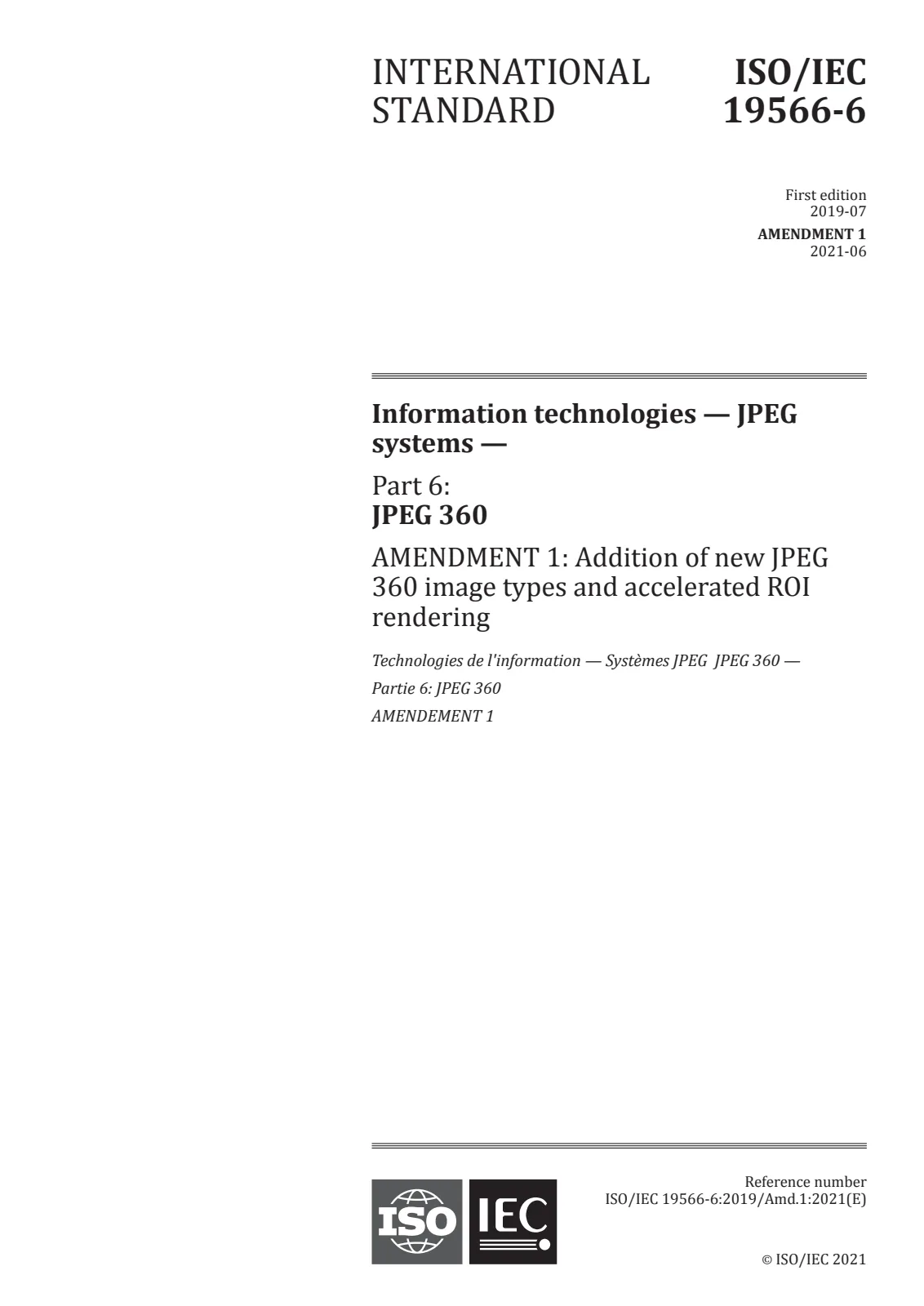

Open preview (PDF)Information technologies — JPEG systems — Part 6: JPEG 360 — Amendment 1: Addition of new JPEG 360 image types and accelerated ROI rendering
