Overview

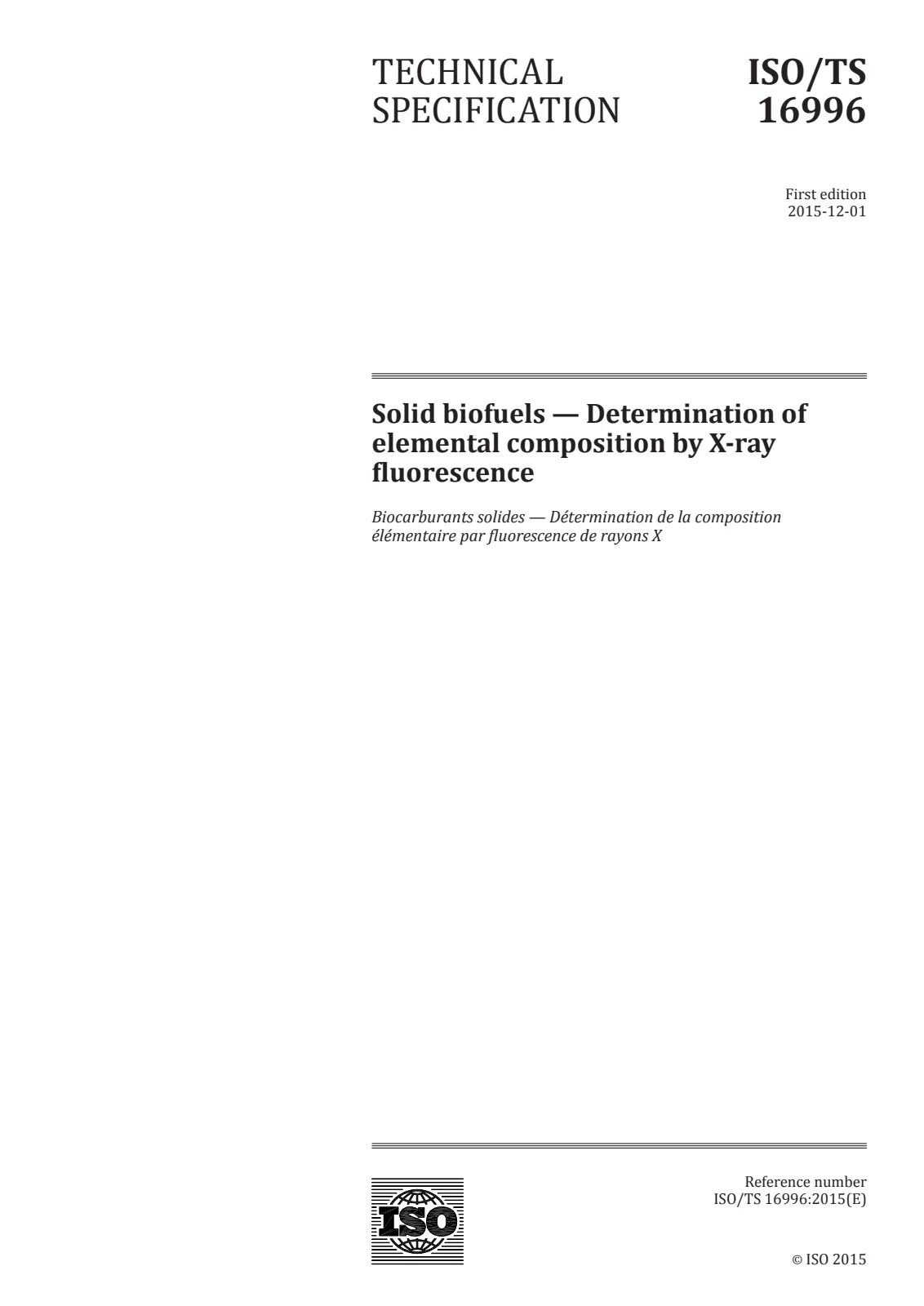

ISO/TS 16996:2015 - Solid biofuels: Determination of elemental composition by X‑ray fluorescence specifies procedures for measuring major and minor element concentrations in biomass using energy dispersive (EDXRF) or wavelength dispersive (WDXRF) X‑ray fluorescence. The Technical Specification covers calibration with biomass reference materials for quantitative results and allows semi‑quantitative analysis using matrix‑independent standards. Applicable elements include Na, Mg, Al, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Br, Mo, Cd, Sb and Pb. Typical detectable concentrations start from approximately 0.0001% (depending on element, calibration and instrument).
Key topics and technical requirements
- Scope and elements: Defines the list of elements analyzable by XRF for solid biofuels and practical detection ranges.
- Instrumentation: Describes requirements for EDXRF and WDXRF systems, detectors, source modifiers and radiation‑safety compliance.
- Sample preparation: Covers drying, milling and sample presentation options (powder cups, pressed pellets - pellet press capable of ≥ 50 kN recommended).
- Calibration approaches:
- Quantitative calibration using biomass reference materials (matrix‑matched).
- Semi‑quantitative calibration using matrix‑independent (manufacturer) standards.
- Recommended pressed pellet method for robust calibration.
- Matrix correction methods: Includes Compton (incoherent) scattering internal standard, fundamental‑parameter approaches, influence coefficient corrections and empirical alpha corrections.
- Measurement conditions & quality control: Instrument settings for EDXRF/WDXRF, drift correction procedures, use of reference materials and performance checks.
- Safety: Radiation protection and operator competence according to national/international regulations.
Applications and users
ISO/TS 16996:2015 is useful for:
- Laboratories performing routine elemental analysis of solid biofuels and biomass feedstocks.
- Biomass producers and fuel suppliers monitoring ash‑forming elements and contamination (soil/sand).
- Power plants and combustion system operators assessing ash behaviour (slagging, fouling) risk.
- Environmental and regulatory agencies screening for heavy metal content.
- Instrument manufacturers and calibration service providers developing XRF calibration sets for biomass.
Practical uses include rapid screening of ash elements, contamination detection, and semi‑quantitative trace‑metal surveillance where full trace analysis is not required or when faster turnaround is needed.
Related standards
- ISO 16559 - Solid biofuels: terminology, definitions and descriptions (normative reference).
- Developed under ISO/TC 238 (Solid biofuels).
