Overview

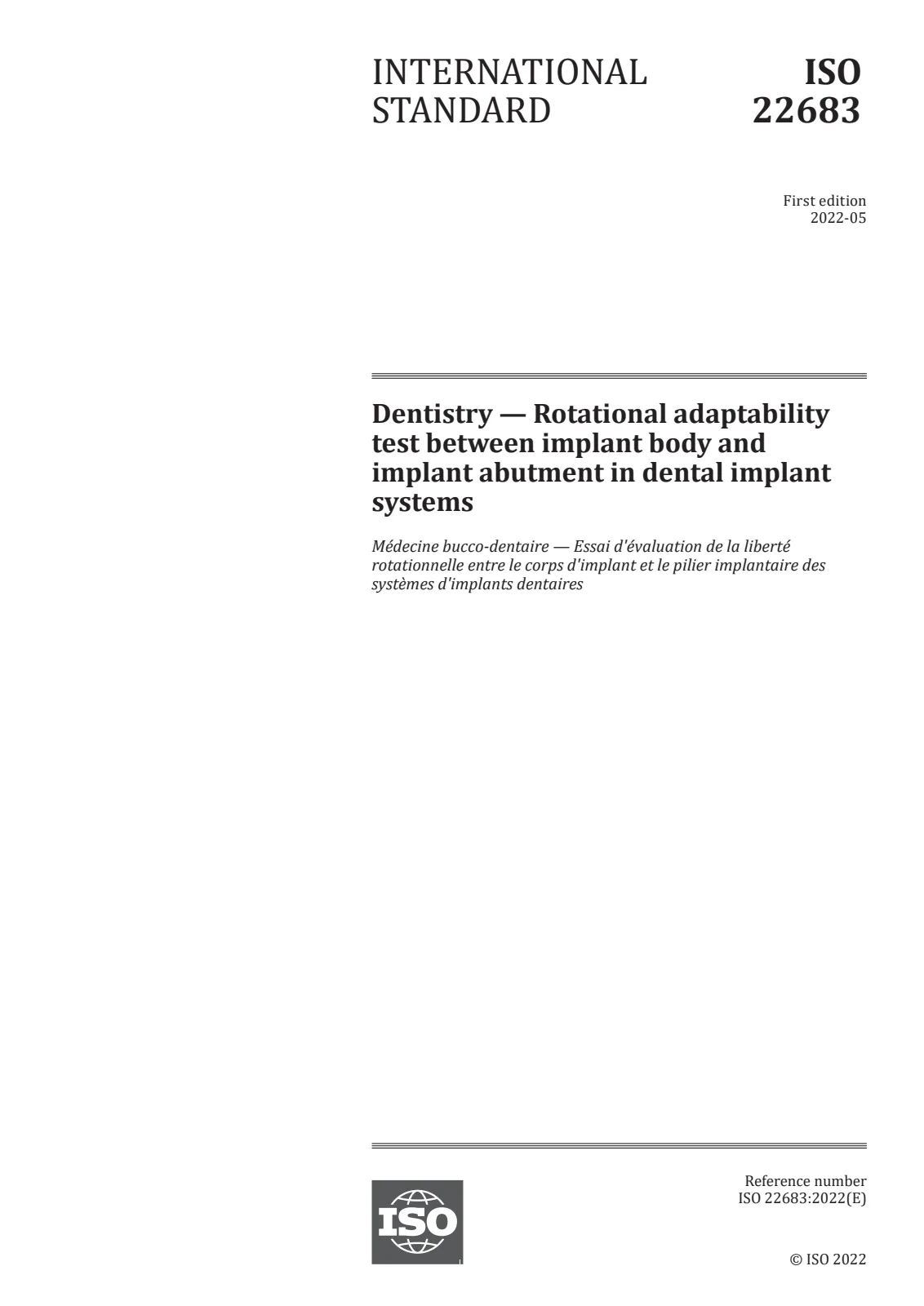

EN ISO 22683:2022 - "Dentistry - Rotational adaptability test between implant body and implant abutment in dental implant systems" - specifies a standardized test method to evaluate the rotational adaptability (rotational clearance angle) between an implant body and an implant abutment. The standard applies to implant systems that rely solely on an anti-rotational feature (for example hexagonal connections) rather than a friction-fit. It requires tests on representative, finished components (not analogs or replicas) and documents the measurement, reporting and sampling approach.
Key topics and requirements
- Scope: Applicable only to systems without friction-fit; analog/replica components are not permitted.
- Definitions: Clear terms such as rotational angle (angle measured when an abutment is rotated clockwise and counter‑clockwise without screw/cement) and rotational adaptability.
- Sampling: Test assemblies comprise five implant bodies and five matching abutments.
- Apparatus:
- A rotatable testing device with two parts: a goniometer and a jig to hold the components.
- The goniometer must measure to within 0.5°.
- The two parts must not contact directly to avoid extra rotational friction; the jig must not deform specimens.
- Procedure:
- Implant body fixed with axis perpendicular to lower jig surface.
- Abutment seated passively (no screw, cement or preload) and rotated both clockwise and counter‑clockwise to its limits.
- Measure maximum rotational angle (θ) for each assembly.
- Repeat for five assemblies and calculate mean and standard deviation.
- Test report: Must include product identification (manufacturer, catalogue/lot numbers), materials, geometric dimensions, test method and goniometer spec, raw results, mean and standard deviation, testing site/date, sampling method, and any anomalies.
Applications and users
- Manufacturers: validate design tolerances and quality control of implant‑abutment interfaces.
- Test laboratories: perform standardized rotational adaptability testing for product evaluation and batch verification.
- R&D and QA teams: compare connection designs, optimize anti‑rotational geometries, and monitor manufacturing variability.
- Regulatory/Notified bodies and procurement: use standardized test data for product assessment and conformity evidence.
- Dental engineers and clinicians (indirectly): rely on manufacturers’ test results to ensure predictable prosthetic positioning and resistance to loosening.
Practical benefits include consistent measurement of rotational clearance to reduce prosthesis loosening risk, improve occlusal accuracy, and support supplier claims with standardized data.
Related standards
- ISO 1942 - Dentistry - Vocabulary
- ISO 16443 - Dentistry - Vocabulary for dental implant systems and related procedures
- ISO 14801 - Dentistry - Dynamic loading test for endosseous dental implants
Keywords: EN ISO 22683:2022, rotational adaptability, dental implant systems, implant body, implant abutment, rotational angle, goniometer, anti-rotational feature.
